遗传算法/最优保留策略

最优保留策略指将群体中最优的一部分个体不经过选择, 交叉和变异操作, 直接进入下一代, 以避免优秀个体损失. 我们希望适应度最好的个体总是能保留到下一代群体中, 以避免优秀的基因因为偶然原因而被淘汰(例如由于过量引用伏特加而在俄罗斯轮盘赌中失利).

最优保留策略的执行过程如下:

  1. 找出当前群体中适应度最高和最低的个体.
  2. 若当前群体中最优个体比历史最优个体适应度还高, 则以当前群体最优个体作为历史最优个体
  3. 用历史最优个体替换掉当前群体中的最差个体.
  4. 执行后续遗传算子: 选择, 交叉和变异等.

最有保留策略同时也会带来一些负面问题, 它虽然可以保证优秀个体得到遗传, 但同时也容易让一个局部最优个体快速扩散到整个种群而使得算法的全局搜索能力下降, 因此你可以选择配合略微升高的交叉概率和变异概率一起使用.

代码实现

  • 复制首节例子代码, 增加作用于 evolve 函数的 optret 装饰器.
  • 为了方便观察, 调整种群大小为 4, 变异概率为 0.5.
import matplotlib.animation
import matplotlib.pyplot as plt
import numpy as np

plt.style.use('seaborn')


class GA:
    def __init__(self):
        self.pop_size = 4
        self.max_iter = 20
        self.pc = 0.6
        self.pm = 0.5
        self.dna_size = 10
        self.x_bound = [0, 5]

    def f(self, x):
        return np.sin(10 * x) * x + np.cos(2 * x) * x

    def encode(self, x):
        a = x / (self.x_bound[1] - self.x_bound[0]) * (2 ** self.dna_size - 1)
        a = int(a)
        return np.array(list(np.binary_repr(a).zfill(self.dna_size))).astype(np.uint8)

    def decode(self, per):
        return per.dot(1 << np.arange(self.dna_size)[::-1]) / (2**self.dna_size - 1) * self.x_bound[1]

    def perfit(self, per):
        x = self.decode(per)
        return self.f(x)

    def getfit(self, pop):
        x = self.decode(pop)
        r = self.f(x)
        return r

    def select(self, pop, fit):
        fit = fit - np.min(fit)
        fit = fit + np.max(fit) / 2 + 0.001
        idx = np.random.choice(np.arange(self.pop_size), size=self.pop_size, replace=True, p=fit / fit.sum())
        pop = pop[idx]
        return pop

    def optret(self, f):
        def mt(*args, **kwargs):
            opt = None
            opf = None
            for pop, fit in f(*args, **kwargs):
                max_idx = np.argmax(fit)
                min_idx = np.argmax(fit)
                if opf is None or fit[max_idx] >= opf:
                    opt = pop[max_idx]
                    opf = fit[max_idx]
                else:
                    pop[min_idx] = opt
                    fit[min_idx] = opf
                yield pop, fit
        return mt

    def crosso(self, pop):
        for i in range(0, self.pop_size, 2):
            if np.random.random() < self.pc:
                a = pop[i]
                b = pop[i + 1]
                p = np.random.randint(1, self.dna_size)
                a[p:], b[p:] = b[p:], a[p:]
                pop[i] = a
                pop[i + 1] = b
        return pop

    def mutate(self, pop):
        mut = np.random.choice(np.array([0, 1]), pop.shape, p=[1 - self.pm, self.pm])
        pop = np.where(mut == 1, 1 - pop, pop)
        return pop

    def evolve(self):
        pop = np.random.randint(2, size=(self.pop_size, self.dna_size))
        pop_fit = self.getfit(pop)
        yield pop, pop_fit
        for _ in range(self.max_iter - 1):
            chd = self.select(pop, pop_fit)
            chd = self.crosso(chd)
            chd = self.mutate(chd)
            chd_fit = self.getfit(chd)
            yield chd, chd_fit
            pop = chd
            pop_fit = chd_fit


ga = GA()
gaiter = ga.optret(ga.evolve)()

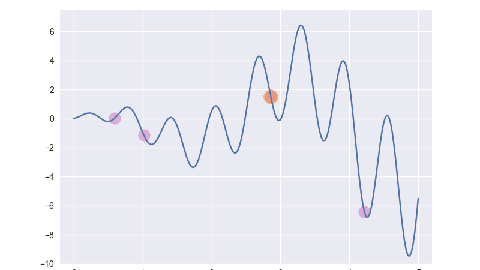

fig, ax = plt.subplots()
ax.set_xlim(-0.2, 5.2)
ax.set_ylim(-10, 7.5)
x = np.linspace(*ga.x_bound, 200)
ax.plot(x, ga.f(x))
sca1 = ax.scatter([], [], s=200, c='#CF6FC1', alpha=0.5)
sca2 = ax.scatter([], [], s=300, c='#ED8826', alpha=0.5)


def update(*args):
    pop, _ = next(gaiter)
    fx = ga.decode(pop)
    fv = ga.f(fx)
    i = np.argmax(fv)
    sca1.set_offsets(np.column_stack((fx, fv)))
    sca2.set_offsets(np.column_stack(([fx[i]], fv[i])))
    # plt.savefig(f'/tmp/img/{args[0]+1:0>2}.png')


ani = matplotlib.animation.FuncAnimation(fig, update, interval=200, repeat=False)
plt.show()
